KSUN Walkie-Talkie KSX-UV5D (H1)

  • Model:

    KSX-UV5D
  • Color:

    Black
  • Brand:

    KSUN

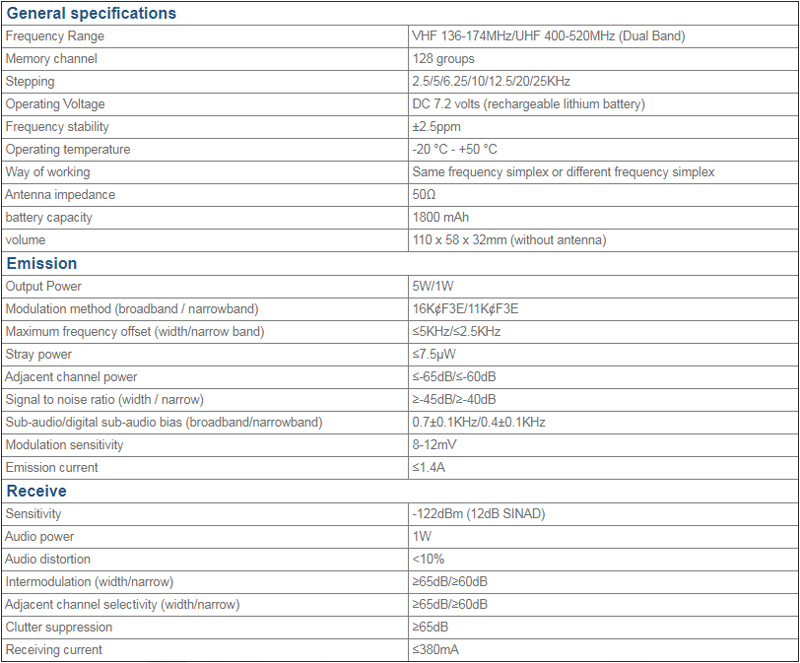

 General specifications
 Frequency Range  VHF 136-174MHz/UHF 400-520MHz (Dual Band)
 Memory channel  128 groups
 Stepping  2.5/5/6.25/10/12.5/20/25KHz
 Operating Voltage  DC 7.2 volts (rechargeable lithium battery)
 Frequency stability   ±2.5ppm
 Operating temperature  -20 °C - +50 °C
 Way of working  Same frequency simplex or different frequency simplex
 Antenna impedance  50Ω
 battery capacity  1800 mAh
 volume  110 x 58 x 32mm (without antenna)
 Emission
 Output Power  5W/1W
 Modulation method (broadband / narrowband)  16K¢F3E/11K¢F3E
 Maximum frequency offset (width/narrow band)  ≤5KHz/≤2.5KHz
 Stray power  ≤7.5μW
 Adjacent channel power  ≤-65dB/≤-60dB
 Signal to noise ratio (width / narrow)  ≥-45dB/≥-40dB
 Sub-audio/digital sub-audio bias (broadband/narrowband)  0.7±0.1KHz/0.4±0.1KHz
 Modulation sensitivity  8-12mV
 Emission current  ≤1.4A
 Receive
 Sensitivity  -122dBm (12dB SINAD)
 Audio power  1W
 Audio distortion  <10%
 Intermodulation (width/narrow)  ≥65dB/≥60dB
 Adjacent channel selectivity (width/narrow)  ≥65dB/≥60dB
 Clutter suppression  ≥65dB
 Receiving current  ≤380mA
