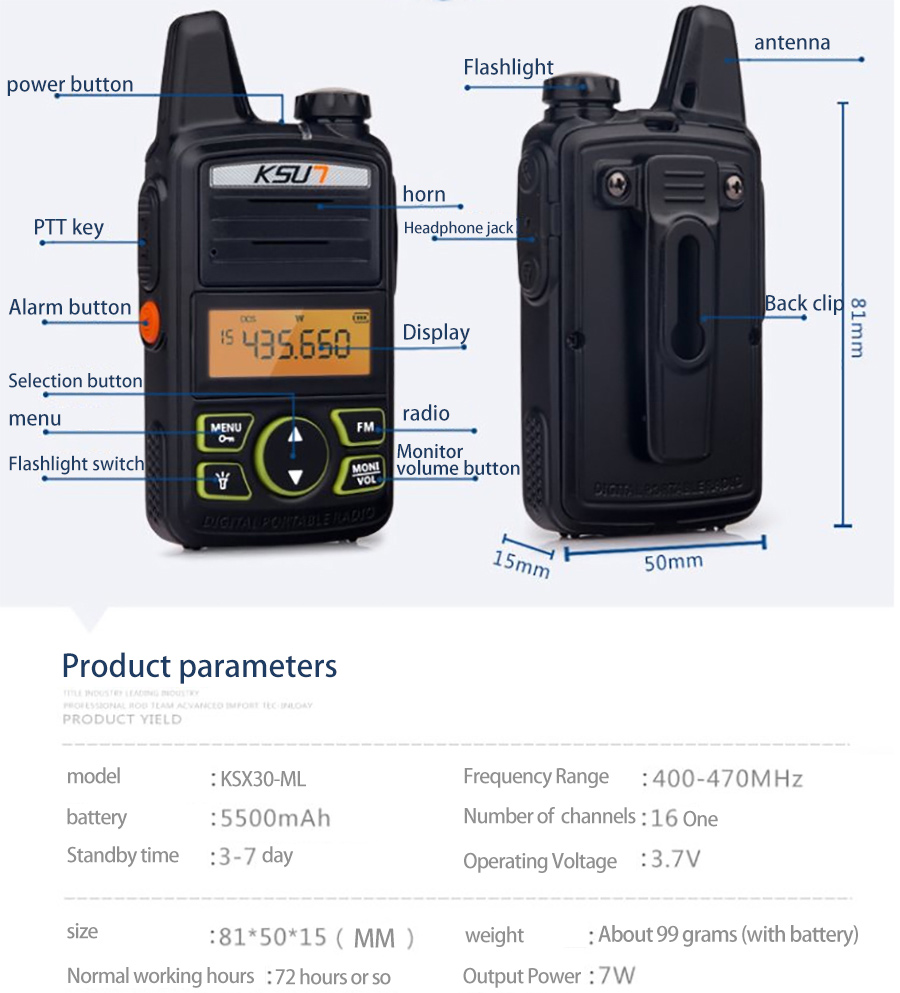

KSUN Walkie-Talkie KSX30-ML

  • Model:

    KSX30-ML
  • Color:

    Black
  • Brand:

    Ksun

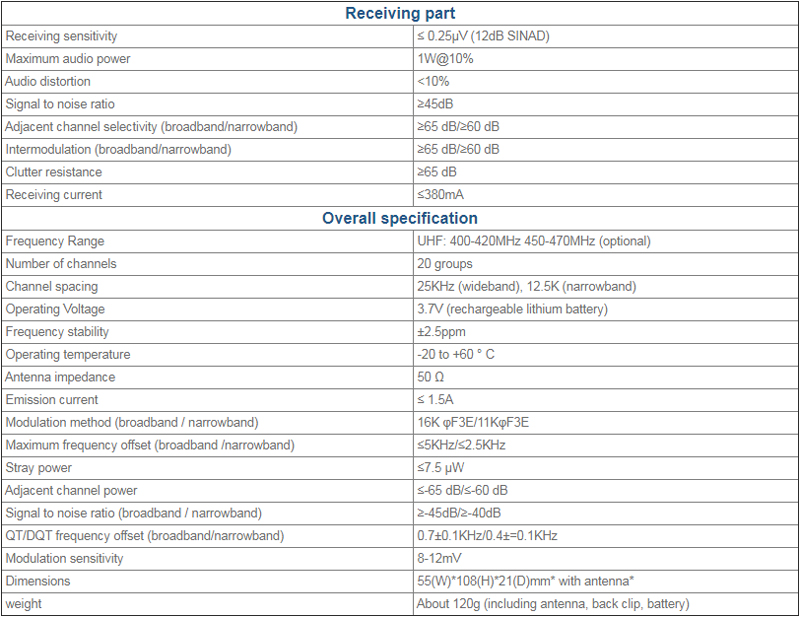

Receiving part
 Receiving sensitivity  ≤ 0.25μV (12dB SINAD)
 Maximum audio power  1W@10%
 Audio distortion   <10%
 Signal to noise ratio  ≥45dB
 Adjacent channel selectivity (broadband/narrowband)  ≥65 dB/≥60 dB
 Intermodulation (broadband/narrowband)  ≥65 dB/≥60 dB
 Clutter resistance  ≥65 dB
 Receiving current  ≤380mA
Overall specification
 Frequency Range  UHF: 400-420MHz 450-470MHz (optional)
 Number of channels  20 groups
 Channel spacing  25KHz (wideband), 12.5K (narrowband)
 Operating Voltage  3.7V (rechargeable lithium battery)
 Frequency stability  ±2.5ppm
 Operating temperature  -20 to +60 ° C
 Antenna impedance  50 Ω
 Emission current  ≤ 1.5A
 Modulation method (broadband / narrowband)  16K φF3E/11KφF3E
 Maximum frequency offset (broadband /narrowband)  ≤5KHz/≤2.5KHz
 Stray power  ≤7.5 μW
 Adjacent channel power  ≤-65 dB/≤-60 dB
 Signal to noise ratio (broadband / narrowband)  ≥-45dB/≥-40dB
 QT/DQT frequency offset (broadband/narrowband)  0.7±0.1KHz/0.4±=0.1KHz
 Modulation sensitivity  8-12mV
 Dimensions  55(W)*108(H)*21(D)mm* with antenna*
 weight  About 120g (including antenna, back clip, battery)
